Events & Alarms: Vista Touch Flow

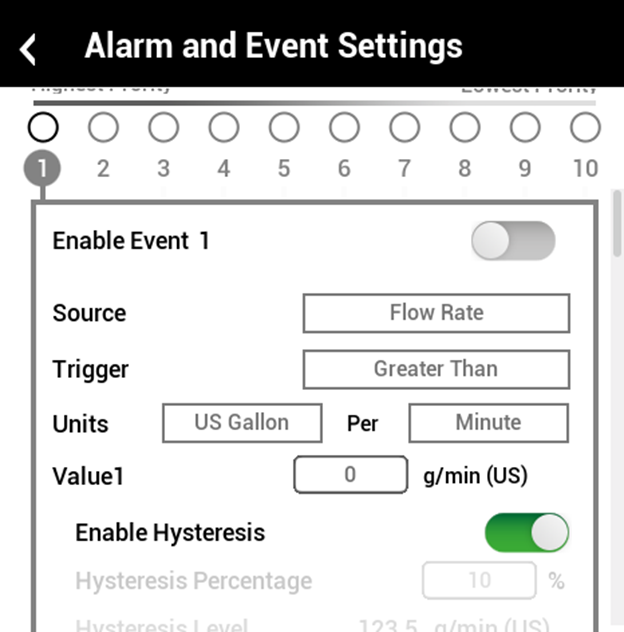

The following options are available within Alarm and Event Settings for Vista Touch Flow.

Source

FlowRate – Set an alarm or event based on the flow rate value.
RawCurrent – Set an alarm or event based on the Raw Current value.
RawFrequency – Set an alarm or event based on the Raw Frequency value.
FunctionButton 1 – Set an alarm or event based on Function Button 1.
FunctionButton 2 – Set an alarm or event based on Function Button 2.
CloudConnection – Set an alarm or event based on the status of the cloud connection.
NetworkConnection – Set an alarm or event based on the status of the network connection.

Triggers

GreaterThan – Set an alarm or event based on a value greater than Value 1.
LessThan – Set an alarm or event based on a value less than Value 1.
Inbetween – Set an alarm or event based on a value between Value 1 and Value 2.
Outside– Set an alarm or event based on a value outside of Value 1.
EqualTo – Set an alarm or event based on a value equal to Value 1.
On– Set an alarm or event based on the status of the cloud or network connection.
Off– Set an alarm or event based on the status of the cloud or network connection.

Units

Units of Measurement (usually set for the same parameter as the gauge settings.

Per (usually set for the same parameter as the gauge setting)

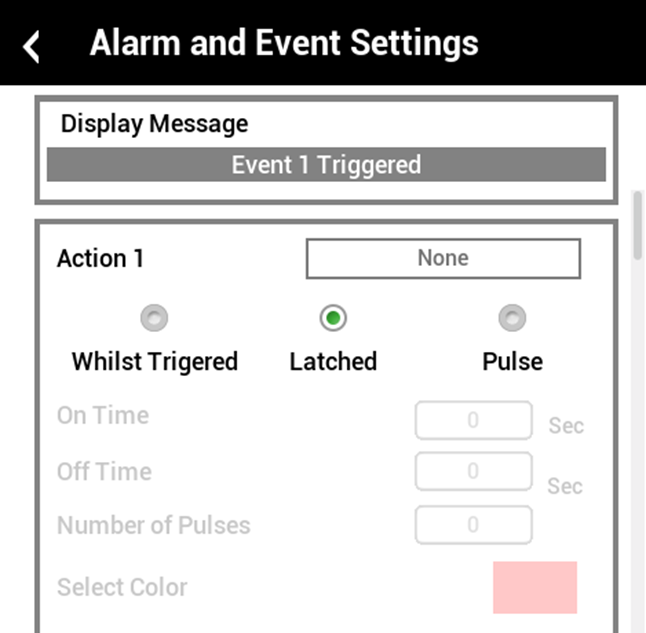

Actions
